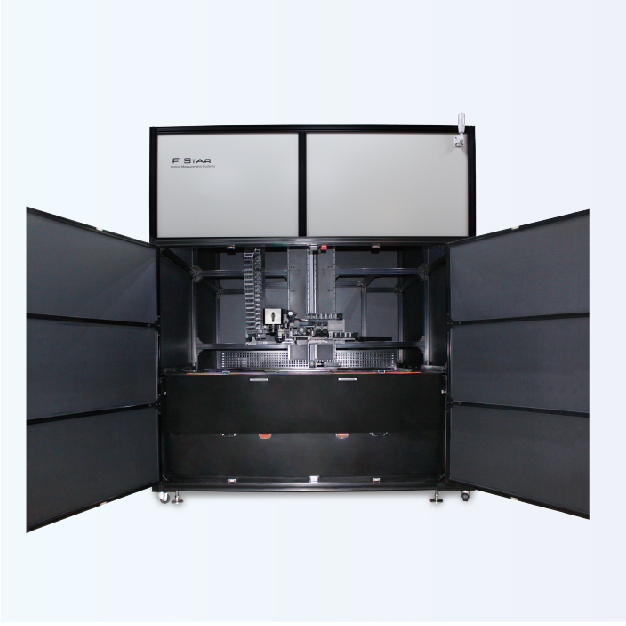

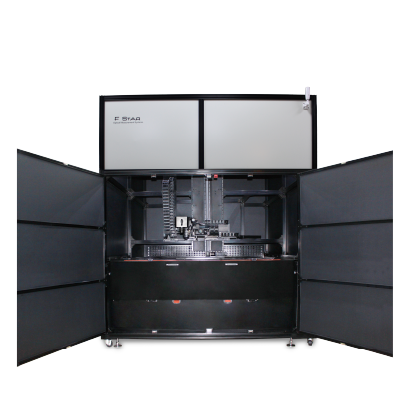

FS-GA-HC obtains product optical data through measurement with the imaging Colorimeter DI-2600, and is mainly used for optical item testing of various automotive displays under high and low temperatures. The equipment complies with relevant optical testing standards such as IDMS V1.03, VESA-FPDM 2.0, Display Specification for Automotive Application, and Area Sticking Image Standard for Displays (TFT-LCD).

The temperature-controlled chamber supports placement and testing of products ranging from 1 to 60 inches. Temperature sensors inside the temperature chamber can real-time monitor internal temperature and perform real-time feedback regulation (via air-blowing cooling/heating method, with a temperature range of -40℃ to 100℃ and an accuracy of ±1℃).

Measurement Items

1. German OEM 2nd-order, 3rd-order, and checkerboard residual image testing;
2. Black Mura
3. Luminance, chromaticity, and uniformity
4. RGB chromaticity and color gamut coverage
5. Contrast ratio
6. Grayscale Gamma
7. Crosstalk (tested at room temperature)
8. Grayscale response time
9. Flicker
10. Luminance, chromaticity, and response time under high/low temperature environments (-40℃ to 100℃)
